None of that was intentional. It's just what happens when quality assurance tools capture everything by default. Platforms like EmberQA's Voice Analytics for Contact Center QA generate automated transcripts, searchable recordings, and CSV exports — genuinely useful for coaching, but each one is a place payment data can hide.
That's the core risk behind PCI compliance and call recording: sensitive payment data doesn't stay confined to the moment it's spoken. PCI DSS governs how organizations that store, process, or transmit cardholder data must protect it, while separate federal and state laws govern whether you needed consent to record the call in the first place. Two different problems, two different rulebooks.
This guide covers what payment data must never be retained, why pause-and-resume often falls short, and how QA teams can keep monitoring quality without creating new exposure.
Key Takeaways
- PCI DSS covers cardholder data captured through recordings, transcripts, screen captures, and CRM notes — not just payment processors
- Sensitive authentication data like CVV codes and PINs can never be retained after authorization, even when encrypted
- Automated redaction and DTMF/IVR capture reduce risk further than manual pause-and-resume alone
- Recording controls are only one control layer; access management, encryption, monitoring, and training complete it
What PCI DSS Means for Call Recording
PCI DSS (Payment Card Industry Data Security Standard) applies to any organization that stores, processes, or transmits cardholder data, or that can affect the security of systems that do. The current version, PCI DSS v4.0.1, published in June 2024, replaced v4.0 at the end of that year without adding or removing any requirements (PCI Security Standards Council).
Scope isn't about industry labels. A merchant, service provider, BPO, answering service, insurer, lender, or collections operation can all fall inside PCI DSS scope, depending on what data actually flows through their phones and software.
A debt collector's phone system might route payment calls through the same recorder used for regular collection calls, and that recorder inherits PCI scope the moment cardholder data touches it.
Cardholder Data vs. Sensitive Authentication Data
These two categories get treated very differently:
- Cardholder data (CHD): the primary account number, plus cardholder name, expiration date, or service code when stored with it
- Sensitive authentication data (SAD): CVV/CVC/CID codes, PINs and PIN blocks, and full magnetic-stripe or chip data
CHD can be stored under strict conditions. SAD cannot be retained after authorization, even if it's encrypted.

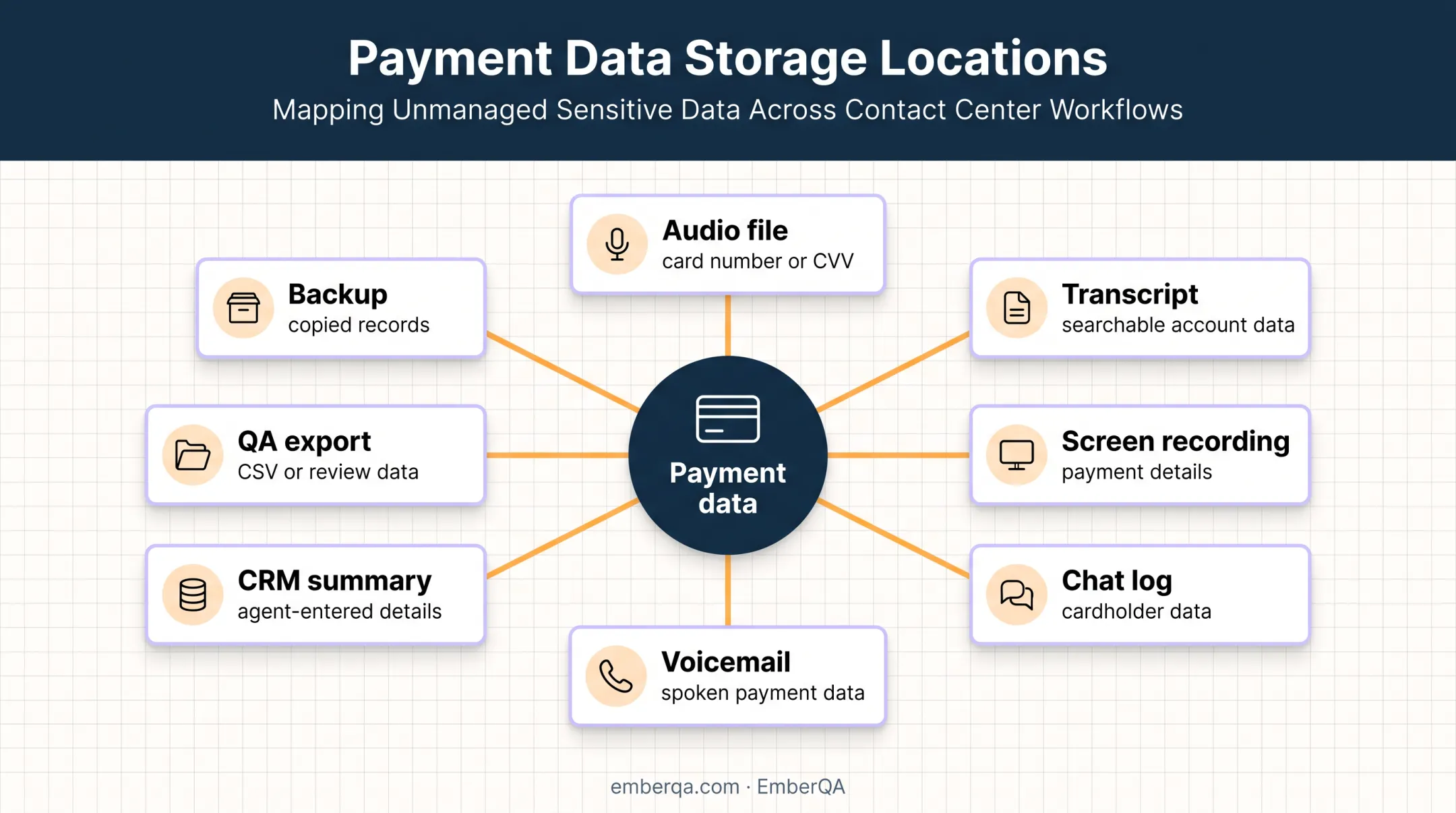

Recordings Are a Storage Medium, Not Just Sound
An audio file is data storage. So is a transcript, a screen recording, a chat log, a voicemail, or a call summary an agent typed into a CRM. Any of these can hold a card number or CVV just as easily as a database field.
Encryption, restricted access, or a secure cloud location doesn't automatically make prohibited data okay to keep. If SAD landed in a recording, it needs to come out.
PCI DSS also isn't the only rulebook. Call-recording consent laws operate independently, so most companies need both payment-data controls and a proper recording disclosure process. Before building either, map where payment data is spoken, typed, transcribed, and copied into downstream systems.
PCI DSS Requirements for Recorded Calls and Transcripts
When a caller starts reading off card numbers, the goal is simple: keep prohibited data out of the recording, or remove it fast if it gets in anyway. That means restricting access to whatever captured it and documenting exactly how the control works.
What Can Stay, What Can't
PCI SSC's guidance draws a hard line. Requirement 3.3.1 prohibits retaining sensitive authentication data after authorization, even when encrypted. The council's FAQ specifically calls out CVV or CVC codes stored in a WAV or MP3 file as a violation (PCI Security Standards Council).
Here's the breakdown:
- Never retain after authorization: CVV/CVC/CID, PIN or PIN block, full mag-stripe or chip data
- May be retained under controls: full PAN, but only masked or truncated wherever displayed, and unreadable in storage
- Applies everywhere: audio, transcripts, screen recordings, chat, email, CRM notes, QA exports, and agent-written summaries all count as storage locations
If your speech analytics tool can search a transcript for a 16-digit number, that transcript is holding account data. It needs the same protection as any database field.
Protecting Recordings That Contain Permitted Data
For any cardholder data you're allowed to keep, expect to maintain:
- Encryption in transit and at rest
- Role-based access with least privilege
- Secure, logged playback with no unrestricted downloads
- Defined retention limits and controlled deletion
- Audit logs showing who accessed what, and when
"The call is encrypted" isn't a full answer. Encryption protects data in motion or at rest, but it says nothing about whether a transcript system, an export, or a backup still holds a card verification code that should've been purged.
A recording can be perfectly encrypted and still violate 3.3.1 if the underlying content shouldn't exist anymore.
Why Pause-and-Resume Falls Short
Manual pause-and-resume relies on an agent remembering to hit a button. PCI SSC guidance flags the common failure modes: pausing too late, forgetting to resume, or missing card details that land outside the paused channel.
Those details can still reach a chat window, screen share, or another parallel system the pause never covered (PCI Security Standards Council).
Beyond human error, pauses create gaps in your QA evidence. They also rarely descope the agent's workstation, telephony environment, or home-office setup for remote staff.
Before you finalize any design, review it with your acquiring bank, a Qualified Security Assessor, your internal security team, or legal counsel.
Choosing a PCI-Compliant Call-Recording Approach
There's no single right answer here. The best approach depends on payment volume, channels, and how much of the call you need for coaching later. Four approaches show up most often:
| Approach | Main Benefit | Limitation |
|---|---|---|
| No recording during payment | Payment portion never touches the recorder | Loses that segment for QA and dispute evidence |
| Manual pause-and-resume | Simple, familiar to agents | Relies on human timing; creates evidence gaps |
| Automated redaction/suppression | No agent action needed; preserves surrounding context | Requires validated detection accuracy and ongoing testing |
| DTMF/keypad entry or payment IVR | Keeps card digits out of agent audio entirely | Needs integration work; accessibility and fallback planning |

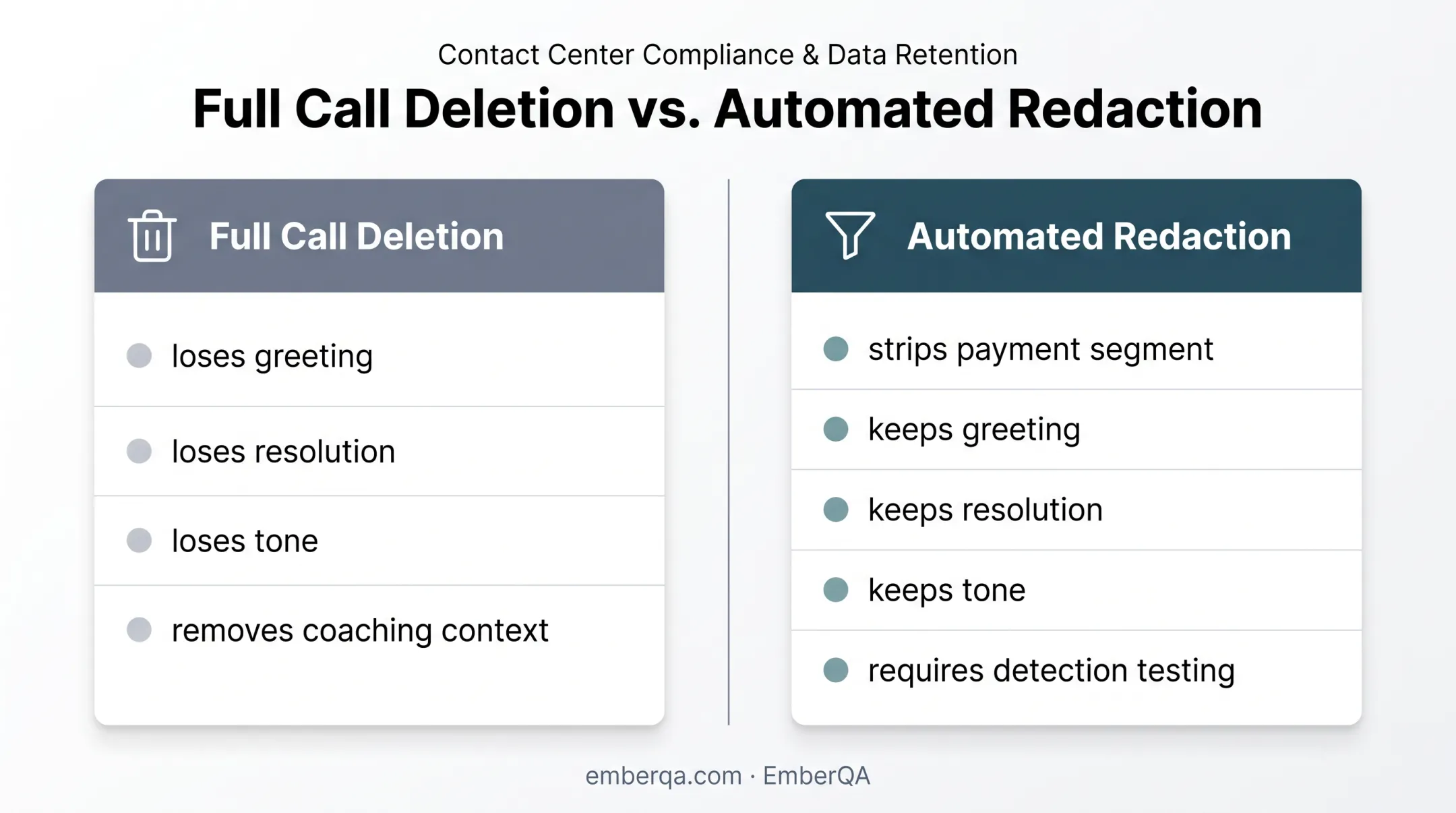

Why Automated Redaction Often Wins on Context
Deleting an entire call loses the parts your QA team actually wants : the greeting, the resolution, and the tone. Automated redaction can strip out just the payment segment while keeping the rest usable for coaching and dispute resolution. That said, redaction is only as good as its detection logic. Test it, review flagged samples, and don't assume it works perfectly out of the box.
DTMF and Payment IVR: Keeping Digits Out of the Room
Routing card entry through keypad tones or a dedicated payment IVR means the agent never hears the numbers, and neither does the recorder. Before adopting it, ask:
- Does the IVR provider handle its own PCI validation, or does responsibility stay with us?
- What happens if a caller can't use a keypad?
- Is there a fallback path that doesn't dump the call back into agent audio?
A Simple Selection Framework
Weigh your choice against:
- Payment volume
- How many channels are involved
- Whether agents work remotely
- How many systems connect to your transcripts and CRM
- How long you actually need to retain recordings
- How narrow you want your PCI scope to be

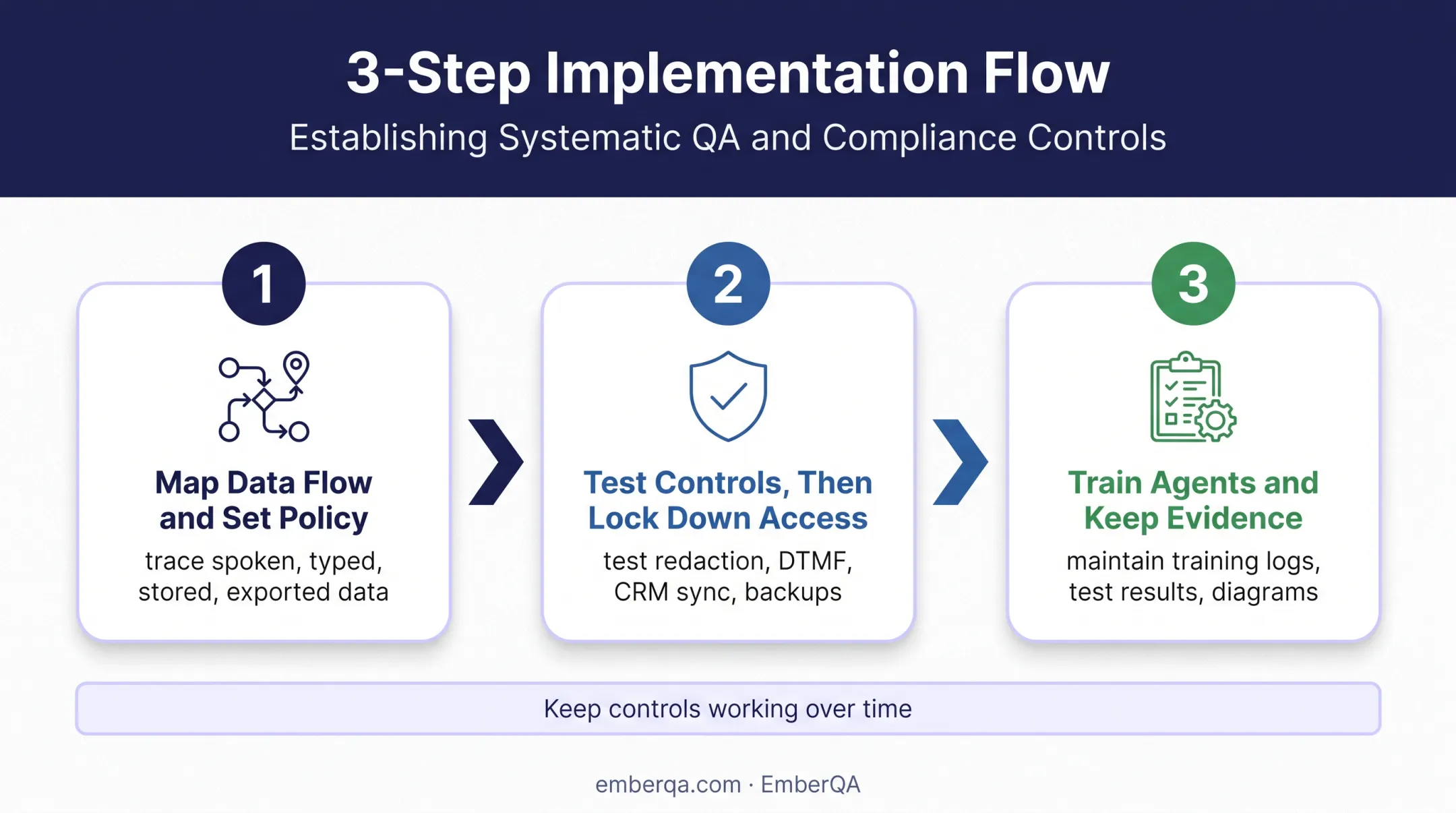

How to Implement a PCI-Aware Call-Recording Workflow
Map the Data Flow and Set Policy
Before changing anything, trace every point where payment data could be spoken, typed, transcribed, displayed, stored, exported, or backed up.
Map that path across telephony, recording, speech-to-text, QA, CRM, workforce management, ticketing, analytics, cloud storage, and any vendor systems in the mix.
Then write the policy down:
- When recording starts and when payment collection happens
- What data agents may ask for, and what they must never record
- What happens the moment a control fails
- Procedures for transfers, conferences, voicemail, screen sharing, remote work, and third-party payment links
Test the Controls, Then Lock Down Access
A control that looks good on paper can still fail in production. Validate the controls that matter most:
- Pause/resume timing and redaction accuracy
- DTMF masking and transcript suppression
- CRM sync jobs and backups, to confirm they capture nothing they shouldn't
Run negative tests as well: use test card numbers and confirm they don't survive in audio, text, metadata, or logs.
Once controls pass testing, lock them down with:
- Role-based permissions for agents, supervisors, QA analysts, compliance staff, and vendors
- Documented retention periods, deletion workflows, and legal hold procedures
- Export approval steps and audit logging
- A clear breach-response chain, including subcontractor obligations
Train Agents and Keep the Evidence
Agents need scenario-based training, not a slide deck they skim once. Cover:
- Disclosure language callers hear before payment
- What to do when a caller blurts out a card number unprompted
- How to use the approved payment workflow every time
- How to report a suspected recording failure immediately
Refresh this after every policy change and during onboarding.
Finally, keep the paperwork: system diagrams, configuration records, access reviews, training logs, test results, and remediation plans. A completed self-assessment questionnaire is only a snapshot in time. It doesn't prove controls are still working six months later.
Ongoing Monitoring and QA Without Exposing Payment Data
A control that passed testing in January can quietly break by June. That's why periodic configuration checks aren't enough. Organizations also need to monitor whether agents are actually following the approved payment workflow, and whether recordings, transcripts, or CRM records are picking up payment data they shouldn't.
QA teams can score plenty of useful signals without touching payment data directly:
- Required disclosures given
- Authentication steps followed correctly
- Adherence to the approved payment-collection process
- Prohibited data requests from agents
- Escalation behavior when something goes wrong
- Customer experience during the payment moment
EmberQA's AI-powered quality assurance platform supports this kind of review. It scores every customer interaction (calls, SMS, emails, and documents) against custom rubrics, flags privacy violations and other compliance risks, and routes coaching from recurring patterns.
Used inside an organization's approved security and PCI controls, consistent automated review catches a workflow drifting off-script before it becomes real exposure—rather than relying on a QA analyst who can only sample a fraction of calls.
A few practices keep the review process itself safe:
- Use masked or redacted content wherever a rubric doesn't require raw payment data
- Limit reviewer permissions to what the role actually needs
- Prevent unnecessary exports of recordings or transcripts
- Validate any AI-assisted workflow before rolling it out broadly
- Escalate suspected exposure to security and compliance teams immediately
Complete the monitoring program with:
- Access-log reviews
- Sample-based control testing
- Redaction validation
- Exception tracking
- Vendor reviews
- Periodic reassessment against the current PCI DSS version
Frequently Asked Questions
What is a PCI record?
A PCI record is any recording, transcript, or document that contains cardholder data, or evidence your organization keeps to show security controls are in place. Classification depends on the data it holds and where it is stored.
How much does it cost to get PCI certified?
Costs vary by company size, transaction environment, PCI scope, assessment method, and whether consultants or new technology are needed. There's no fixed price — get a scoping assessment before budgeting.
Is PCI compliance legally required?
PCI DSS is a contractual requirement from payment brands and acquiring banks, not a federal statute. Obligations still vary by merchant type, business model, and card brand agreements.
What are the 12 requirements for PCI compliance?
PCI DSS v4.0.1 groups 12 requirements around network security, stored-data protection, encryption, access control, monitoring, testing, and security policy. Confirm the latest requirement list on the PCI SSC website before relying on any summary.
What are the PCI compliance requirements for 2026?
PCI DSS v4.0.1 is the current standard. Which requirements apply depends on your scope, payment environment, and whether you are a merchant or service provider. Check the PCI SSC document library for any updates heading into 2026.
Do you have to tell a customer the call is being recorded?
Disclosure and consent requirements depend on federal and state law, who's on the call, and where they're located. Some states require all-party consent while others require just one, so get jurisdiction-specific legal advice rather than assuming one rule applies everywhere.
